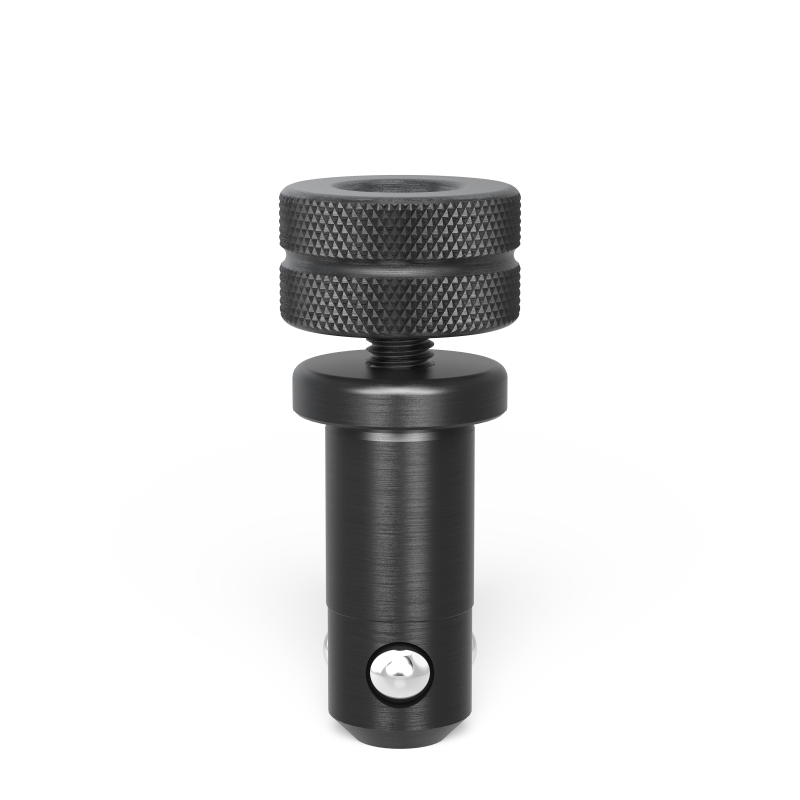

[2-220511] Quick-clamping pin without groove for clamping 2 parts, surface finish – blackening

Product Description

This pin does not have a groove for O-rings, so the surface of its body remains smooth.

The quick-clamping pin with a rotary lock is an ideal connecting element for Siegmund components.

This pin is NOT suitable for connecting the table and the “U-form” angle bracket!

Recommended for use with aluminum profiles.

The clamping torque depends on the material.

When clamping aluminum parts, screws must be tightened by hand only.

• Suitable for clamping 2 parts

• Surface finish – blackening

• With screwable head

• With internal hexagon (Size 5)

Length: 83 mm
Weight: 0.27 kg
Shear force: 130 kN
Tightening torque steel: 15 Nm
Tightening torque aluminum: 6 Nm
Tensile force steel: 15 kN
